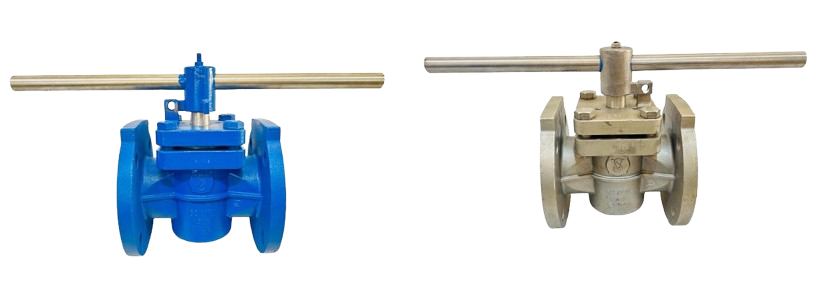

Plug valves are an essential solution for controlling the flow of liquids and gases in various industries. Known for their simplicity, durability, and ability to provide tight shutoff, plug valves are widely used in a variety of applications, from water treatment to chemical processing. Their design allows for easy operation and maintenance, making them a cost-effective and reliable choice for flow control.
Specifications:
| SIZE: | 25mm TO 250mm |
|---|---|
| MATERIAL OF CONSTRUCTION: | ASTM A216 Gr.WCB, ASTM A 351 Gr.CF8,CF8M,CF3M
(Other pressure rating are available on request) |
END CONNECTION: | Flange End as per ANSI B-16.5, 150#, DIN &JIS flanges |
| FACE TO FACE: | As per ANSI B-16.10, 150# |
| DESIGN STANDARD: | BS 5158, BS 5353 |
| HYDRO TEST BODY: | 15 Kg/cm2 and Seat Test 10 Kg/cm2 |
| PNEUMATIC TEST(Air Test): | 6 Kg/cm2 |
| SPARK TEST: | 15 Kv DC |
